Oil-Free Micro Diaphragm Air Pump Manufacturer
Oil-free micro diaphragm air pumps used in medical, industrial, and analytical systems where stable airflow and reliable operation are required. OEM and ODM customization is supported for different device integration needs.
Stable Performance Oil-Free Diaphragm Pumps for Industrial Systems
Pinmotor micro diaphragm air pumps deliver stable airflow for medical, industrial, and gas sampling systems.
The series covers a wide operating range, with flow options from 0.3 to 30 LPM, pressure capability up to 300 kPa, and vacuum performance down to -98 kPa depending on model configuration.

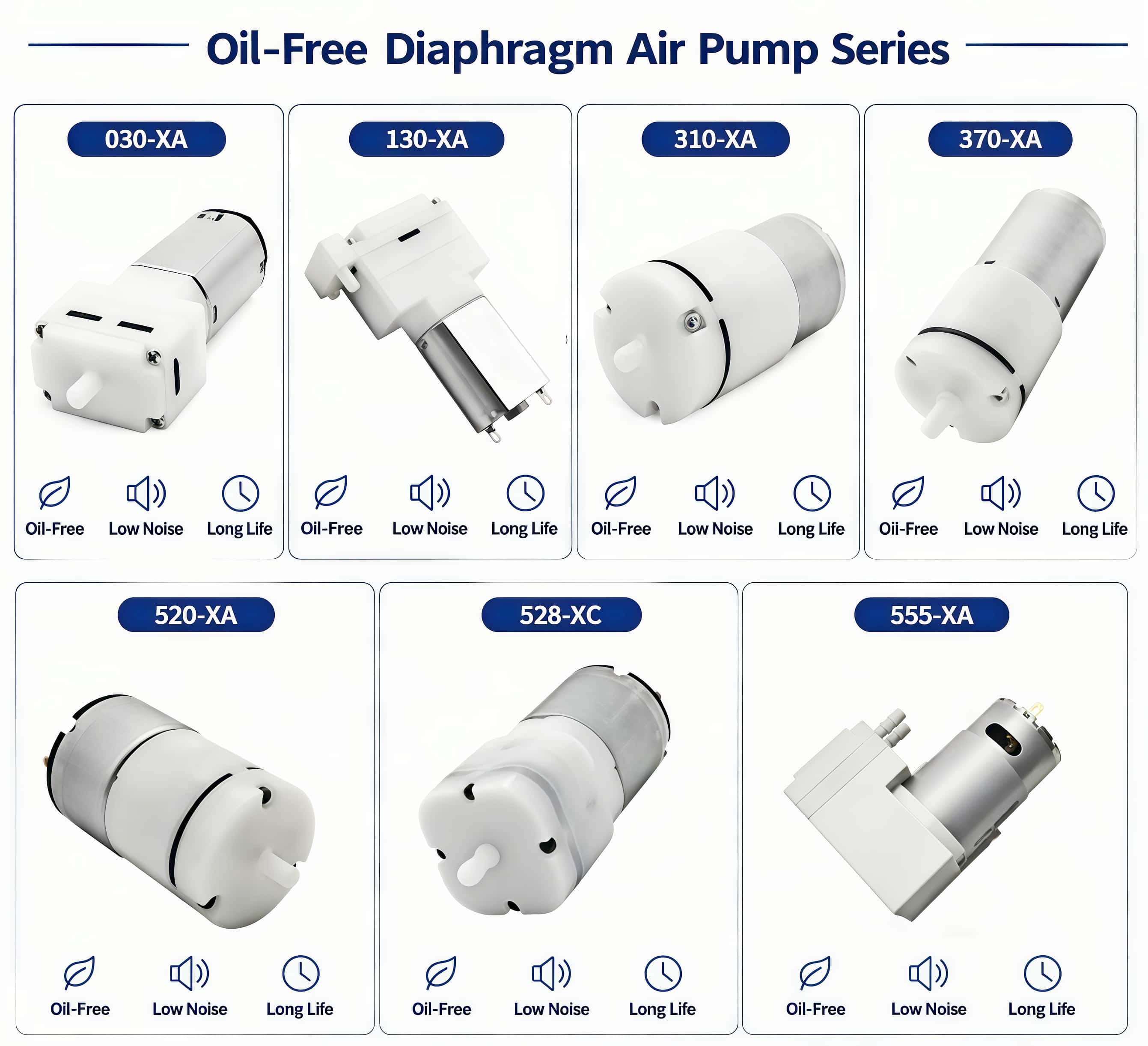

| Series | Flow Range | Pressure / Vacuum | Voltage | Corresponding Model | Product Role |
|---|---|---|---|---|---|
| Compact Low Flow Series | 0.3 – 1 LPM | Low pressure / low vacuum | 3–5V DC | 030-XA | Miniature portable devices |
| Small Flow Series | 1 – 3 LPM | Stable low pressure | 3–6V DC | 130-XA | Medical devices/Beauty instruments |
| Standard Series | 2 – 8 LPM | Medium vacuum / pressure | 5–12V DC | 310-XA | Medical/Gas Detection |
| Balanced Performance Series | 2 – 8 LPM | -80 to -95 kPa | 5–12V DC | 370-XA / XF | Medical/Environmental Monitoring |
| High Flow Series | 8 – 20 LPM | Higher pressure output | 12–24V DC | 520-XA | Industrial/Automation |
| High Performance Series | 10 – 25 LPM | up to ~300 kPa | 12–24V DC | 528-XC | Industrial Systems / Pneumatic Equipment |
| Maximum Output Series | 20 – 30 LPM | High pressure / max flow | 12–24V DC | 555-XA | High-load industrial applications |
Not Sure Which Model Fits Your Application?
From compact devices to industrial systems, we help you select the right diaphragm pump based on your exact requirements.
How Diaphragm Pumps Work & Why They Matter
Micro diaphragm air pumps operate through a reciprocating motion driven by a motor, which moves a flexible diaphragm to create alternating chamber volume changes. This mechanism enables air intake and discharge without lubrication, ensuring clean and stable gas delivery.
Compared with traditional piston or rotary pumps, diaphragm pumps eliminate direct contact between air and mechanical drive components, reducing maintenance requirements and improving long-term reliability in continuous operation systems.
This structure results in several key performance advantages:
No Oil Contamination — Clean Gas Path
The diaphragm completely isolates the air chamber from the mechanical drive system, ensuring that no lubricant enters the airflow path. This makes the pump suitable for applications requiring clean gas delivery, such as medical devices, laboratory instruments, and analytical systems.
Self-Priming & Dry Running Capability
The pump is capable of self-priming and can operate under dry conditions without internal damage. This allows stable performance in gas sampling systems, portable instruments, and intermittent-duty applications where continuous fluid supply is not guaranteed.
Low Noise & Reduced Vibration
The diaphragm motion is optimized for smooth reciprocating movement, reducing mechanical impact and vibration. Combined with structural damping design, the pump operates at lower noise levels compared to conventional pump technologies, making it suitable for noise-sensitive environments.
Technology Comparison
Diaphragm pumps provide cleaner operation and lower maintenance requirements compared to rotary or piston pump structures, making them a preferred solution for precision airflow control systems.
Need Help Choosing the Right Diaphragm Pump?
Our engineers can help you match the right structure, performance, and configuration based on your system requirements.
Engineering Material Options for Pump Stability and Compatibility

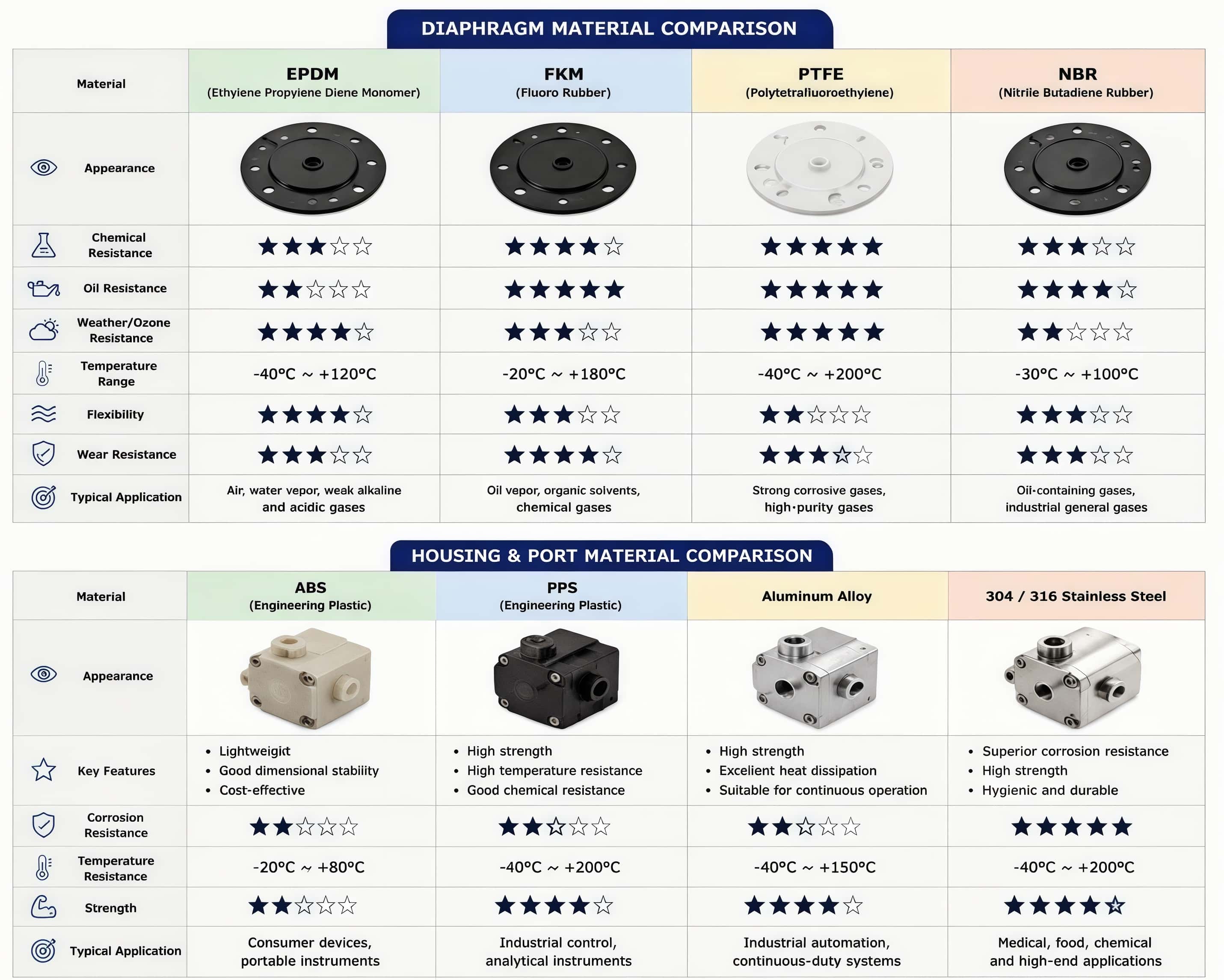

Material selection directly affects pump durability, chemical compatibility, and long-term stability. Pinmotor offers multiple diaphragm and housing material configurations to match different operating environments and media conditions.
Diaphragm Material Options
EPDM (Standard Rubber)
Suitable for air and general gas transfer applications. It provides good aging resistance and stable elasticity, commonly used in standard diaphragm pump configurations.
FKM (Fluoro Rubber)
Designed for improved resistance to oils and chemical exposure. Suitable for environments involving light hydrocarbons or industrial gas mixtures.
PTFE Composite Diaphragm
Provides high chemical resistance and low permeability. Recommended for applications requiring high gas purity or exposure to aggressive media.
NBR (Nitrile Rubber)
Offers good wear resistance and oil resistance. Typically used in general industrial and pneumatic applications with moderate operating conditions.
Housing & Structural Materials
Engineering Plastic (ABS)
Standard housing material with lightweight structure and cost efficiency. Suitable for general indoor and stable temperature environments.
Reinforced Engineering Plastics (PPS)
Improved thermal stability and chemical resistance, used in higher reliability industrial applications.
Aluminum Alloy Housing
Provides higher structural strength and better heat dissipation, suitable for continuous-duty operation systems.
Stainless Steel Components (304 / 316)
Used in selected high-reliability configurations requiring enhanced corrosion resistance and mechanical durability.
Not Sure Which Material Fits Your Application?
We help OEM customers select the right diaphragm and housing materials based on real operating conditions.
Application Requirements Across Different Industries
Different industries place different requirements on airflow stability, duty cycle, noise level, and system integration. Pinmotor diaphragm pumps are configured according to application conditions.
Medical Device Grade
Designed for medical systems requiring stable airflow, low noise, and clean gas delivery in compact environments.
Typical applications: nebulizers, suction devices, blood pressure monitors, IPC therapy systems, negative pressure wound therapy
Recommended models: 030-XA (portable devices), 130-XA (compact medical systems), 310-XA (standard medical equipment)
Core characteristics: oil-free air path, stable pressure output, low vibration, material configuration available for medical integration
Application note: commonly integrated into portable and stationary medical equipment requiring continuous or intermittent airflow control
Environmental Monitoring
Used in gas sampling and environmental analysis systems where stable flow consistency is required for data accuracy.
Typical applications: air quality monitoring, VOC detection, gas analysis instruments, environmental sampling stations
Recommended models: 130-XA (portable analyzers), 310-XA (monitoring modules), 370-XA (continuous sampling systems)
Core characteristics: stable flow output, resistance to environmental variation, suitable for long-duty operation
Application note: optimized for measurement stability rather than high pressure output
Industrial Automation
Integrated into pneumatic and automation systems requiring continuous operation and stable mechanical performance.
Typical applications: vacuum suction systems, packaging machinery, printing equipment, laboratory automation, material handling systems
Recommended models: 370-XA, 520-XA, 528-XC
Core characteristics: continuous-duty design, stable output under load, long service life, low maintenance requirement
Application note: suitable for OEM integration in automated production environments
Beauty & Personal Care
Used in compact consumer devices where size, noise level, and user experience are key design factors.
Typical applications: skincare devices, blackhead removers, massage devices, aromatherapy systems
Recommended models: 030-XA, 130-XA, 310-XA
Core characteristics: low noise operation, compact structure, lightweight design, stable airflow output
Application note: optimized for handheld and portable consumer devices
Best Mini Air Pump Manufacturer & OEM Supplier in China
We provide OEM & customized micro air pump solutions with engineering support for your application requirements.
OEM Micro Diaphragm Pump Customization Capabilities
Beyond standard models, Pinmotor provides OEM-level customization to ensure micro diaphragm pumps can be directly integrated into different device systems without redesigning the entire structure.
Electrical Integration
Electrical configuration can be adapted for system-level control requirements.
Customized connectors (JST, Molex, terminal blocks, etc.)
Integration with driver circuits or control boards
Signal feedback output for system monitoring
Protection functions including over-current, over-voltage, and over-temperature
Value-Added Testing & Validation
Each customized solution can be validated before mass production.
Full performance testing before shipment with test report
Application-specific media compatibility checks
High and low temperature operation testing
Lifetime and durability verification under accelerated conditions
Performance Customization
Pump performance can be adjusted to match system-level operating requirements.
Flow and pressure adjustment based on target working point
PWM or analog speed control for variable flow applications
Integration of pressure or flow control components upon request
Optimization for continuous or intermittent duty cycles
Mechanical Customization
Structural design can be adapted for different installation environments.
Customized air inlet/outlet types (barb, quick connector, threaded interface)
Mounting structure and fixing method adaptation
Wire direction and cable length customization
Housing size and shape modification for compact integration
FAQs About Micro Diaphragm Air Pumps
What are micro diaphragm air pumps used for?
Micro diaphragm air pumps are used for gas transfer in compact systems that require stable airflow and oil-free operation, such as medical devices, environmental monitoring equipment, industrial systems, and portable instruments.
How do micro diaphragm air pumps work?
They operate using a reciprocating diaphragm driven by a motor, creating alternating pressure to move air in and out of the chamber without lubrication or direct air contamination.
What is the difference between micro diaphragm and piston air pumps?
Micro diaphragm air pumps provide oil-free airflow with lower noise and are suitable for precision and clean applications. Piston pumps are used when higher pressure output and heavier-duty operation are required.
Can micro diaphragm air pumps run continuously?
Yes. Continuous operation is supported depending on system design, load conditions, and duty cycle. Proper thermal and pressure management helps maintain stable long-term performance.
Can micro diaphragm air pumps handle different gases?
Yes, but compatibility depends on material configuration. Different diaphragm and housing materials are selected based on gas type and operating environment.
What factors affect the lifespan of a micro diaphragm air pump?
Lifespan is influenced by operating pressure, duty cycle, temperature, and gas cleanliness. Stable working conditions and proper system matching improve service life.
How do I select the right micro diaphragm air pump model?
Selection is based on required flow performance, pressure level, voltage specification, and system integration requirements. OEM customization is available for non-standard applications.
Do you support OEM customization for micro diaphragm air pumps?
Yes. Pinmotor provides OEM customization including performance adjustment, structural modification, and electrical integration to match different device requirements.
Looking for a Micro Diaphragm Air Pump for Your Project?
We support OEM customization and help you match the right pump based on real application conditions.
